Weigh Belt Feeder
Consistent feed accuracy — from light, fragile materials to the heaviest industrial loads

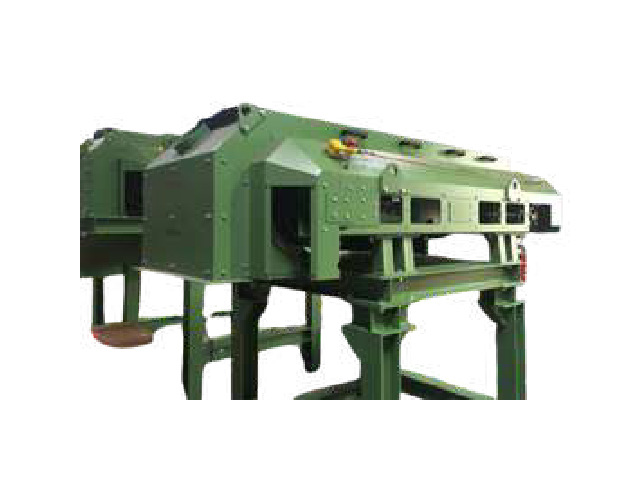

Weigh Belt Feeder
Weigh Belt Feeders are relatively simple, extremely reliable gravimetric feeders providing high feeding precision and efficient process monitoring. Weigh feeders from IEES are available in a variety of sizes and belt widths.
Weigh Belt Feeder has been specially designed for use in the cement, steel, mineral, fertilizer production, agri-industry and other activity sectors using dosing, single or double regulation dosing. We offer our clients proof of our expertise and will provide testing to show that our products are equipped to handle and accurately meter the material in question. Our equipment is designed to provide long-term accuracy, consistency and repeatability, which is particularly important when it comes to the performance of any weigh feeder or conveyor belt scale.
- T Robust Conveyor frame, designed for increased torsion and bending stress for heavy duty application
- Weighing Bridge with direct loading on load cells
- All rollers are permanently lubricated
- Gear motor with Speed Transducer
- Frequency Converter(Integrated with installation in a cabinet)
- Endless vulcanize weighing belt for material temperature 80°C
- Screw tensioning rear pulley for easy belt tension
- Automatic Belt centeringand tension station
- Cleaning Scraper for pulleys, Internal and external Belt surface
- Dust Protect skirt board and discharge hood with rubber sealing
- Weighing electronic enclosureIP65
- Local Control Unity
| Capacity | 50 to 600 TPH and over |
|---|---|
| Material size | From powder up to 50 mm |
| Vibrator | Electrical Rotational |
| TYPE | BF-L | BF-M | BF-H |
|---|---|---|---|
| Belt Width W (mm) | 300-800 mm | 900-1200 mm | 1300-2000 mm |
| Pulley Center (mm) | 1200 to 4000 mm | 1500 to 6000 mm | 2000 to 10000 mm |
| Feed Rate (T/h) | Up to 50 | Up to 200 | Up to 1500 |
| Control Range | 1:5 to 1:50 | 1:5 to 1:50± | 1:5 to 1:50 |
| Accuracy actual Value (%) | ±5% | ±5% | ±5% |
| Bulk Density (T/M3) | 0.5 to 2.4 | 0.5 to 2.4 | 0.5 to 2.4 |
| Material Temperature Max Operation Temperature | +100°C to 180°C | +100°C to 180°C | +100°C to 180°C |
| Protection Class | -80°C to 180°, IP65/IP68 | -80°C to 180°, IP65/IP68 | -80°C to 180°, IP65/IP68 |
