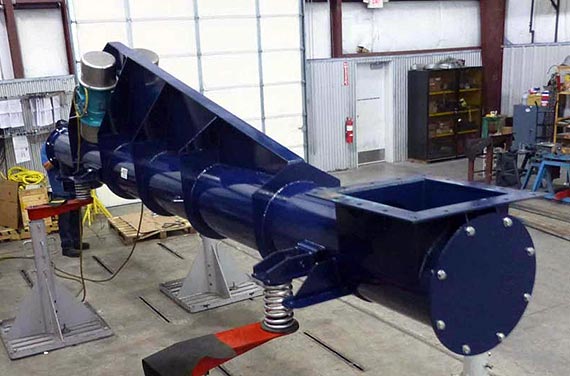

Vibrating Tubular Feeder
IEES vibratory tubular feeders increase the flexibility and efficiency of your conveying processes.
Vibrating Tubular Feeder
We offer closed and corrosion-resistant vibratory tubular feeders that are compatible with a wide range of bulk materials and can withstand a wide temperature range. With their closed shape, they enable dust-free conveying and meet high hygiene standards. With our help, you can achieve your industrial requirements and your conveying goals.
Our vibratory tubular feeders can be used for a wide range of applications in various industries. With their closed, dust-tight design, they prevent contamination of the conveyed material by dust and dirt particles, thus ensuring high pr impurities. With the different drives, you can adapt the conoduct quality, while food-safe, hygienic designnd requirements, which is possible in both directions thanks to s keep out allveying speed and intensity to your individual goals areversing operation. Reversing technology enables cost savings for fs cleaning work. Our magnetic vibrators play a decisive role herelap systems, facilitates alternate dosing and packaging and minimize, as they enable precise dosing and a wide range of process engineering processes.
- Two unbalanced imported electromechanical motors are used to generate linear motion
- Capacity adjustable by counter weight settings
- Equipped with a tubular
- Special replaceable wear proof lining
- Best suited for the extraction of products in bulk from storage bins, hoppers, feeding conveyors etc
| Capacity | 50 to 300 TPH and over |
|---|---|
| Material size | From powder up to 50 mm |
| Vibrator | Electrical Rotational |
| Model | Tube Size (mm) | Feeder Deck No | Equip Slope Degree | Mounting Type | Equip RPM | Stroke (mm) | Capacity (TPH) | Motor Power (kW) | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| KVT273 | 273×1000 | 1 | 6 to 10 degree | Foot Mounted / Wire Rope Mounted | 1500 / 1000 | 4 to 5 | 20 | 0.62 kW × 1500 RPM | 600 |
| KVT323 | 323×1200 | 1 | 6 to 10 degree | Foot Mounted / Wire Rope Mounted | 1500 / 1000 | 4 to 5 | 30 | 0.64 kW × 1500 RPM | 800 |
| KVT406 | 406×1400 | 1 | 6 to 10 degree | Foot Mounted / Wire Rope Mounted | 1500 / 1000 | 4 to 5 | 50 | 0.70 kW × 1500 RPM | 1000 |
| KVT500 | 500×1600 | 1 | 6 to 10 degree | Foot Mounted / Wire Rope Mounted | 1500 / 1000 | 4 to 5 | 80 | 0.7 kW × 1500 RPM | 1400 |
| KVT600 | 600×1600 | 1 | 6 to 10 degree | Foot Mounted / Wire Rope Mounted | 1500 / 1000 | 4 to 5 | 100 | 1.13 kW × 1500 RPM | 1600 |
| KVT800 | 800×1600 | 1 | 6 to 10 degree | Foot Mounted / Wire Rope Mounted | 1500 / 1000 | 4 to 5 | 150 | 1.53 kW × 1500 RPM | 2000 |
| KVT1000 | 1000×1600 | 1 | 6 to 10 degree | Foot Mounted / Wire Rope Mounted | 1500 / 1000 | 4 to 5 | 200 | 1.93 kW × 1500 RPM | 3000 |
